Iselann-Moss Industries, Inc.

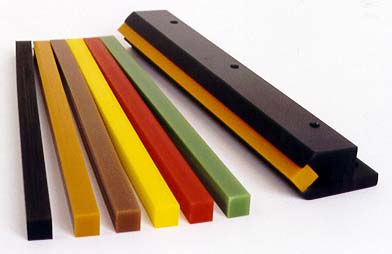

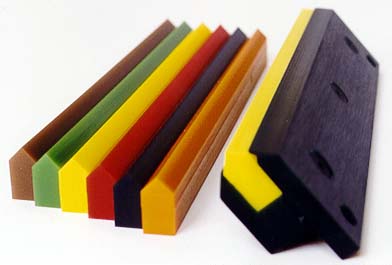

Molded Polyurethane Squeegee
For Hybrid Thick Film and SMT Stencil, & Precision Screen Printing Standard Shapes
 |
|
|
||
| Single Edge .375" x .750" x 24.0" . 45 Degree Angle |
Diamond 375" x .375" x 20.0" |
Rectangular .375" x 1.438" x 16.0" .250" x 1.00" x 6.0" .187" x 1.00" x 6.0" |
Part Numbers
| Color | Shore A Durometer |
Single Edge | Diamond | Rectangular .375x1.438 |
Rectangular .250x1.0 |
Rectangular .187x1.0 |
||
|
|
Blue | 40 | MS40 | MD40 | 375-40 | 250-40 | 187-40 | |
|
|
Black | 50 | MS50 | MD50 | 375-50 | 250-50 | 187-50 | |
|
|
Brown | 60 | MS60 | MD60 | 375-60 | 250-60 | 187-60 | |
|
|
Yellow | 70 | MS70 | MD70 | 375-70 | 250-70 | 187-70 | |
|
|
Red | 80 | MS80 | MD80 | 375-80 | 250-80 | 187-80 | |
|
|
Green | 90 | MS90 | MD90 | 375-90 | 250-90 | 187-80 | |
|
|
Gray | 100 | MS100 | MD100 | 375-100 | 250-100 | 187-100 | |
|
|
Orange | 110 | MS110 | MD110 | 375-110 | 250-110 | 187-110 | |
|
|
Lime green | 120 | MS120 | MD120 | 375-120 | 250-120 | 187-120 | |
Molded squeegee offers the following advantages over sliced or ground squeegee:
• Tighter durometer control (Batch to batch and part to part)
• Tighter dimensional tolerance (+/-.005" width & height)
(Typical height tolerance on sliced squeegee is +/- .015" ), (Angle +/- 1/2 degree)
• Longer edge life (molded edges have a slight radius)
• Straighter edges (offers better print control from even pressure)
• Accurate angles (offers better print control from consistent angle of attack)
• SuperTough Polyurethane offers longer life, less screen wear, and improved ink or paste release
• Custom sizes can be molded to your specifications in our SuperTough Polyurethane or Silicone
• Custom colors are also available upon request.
